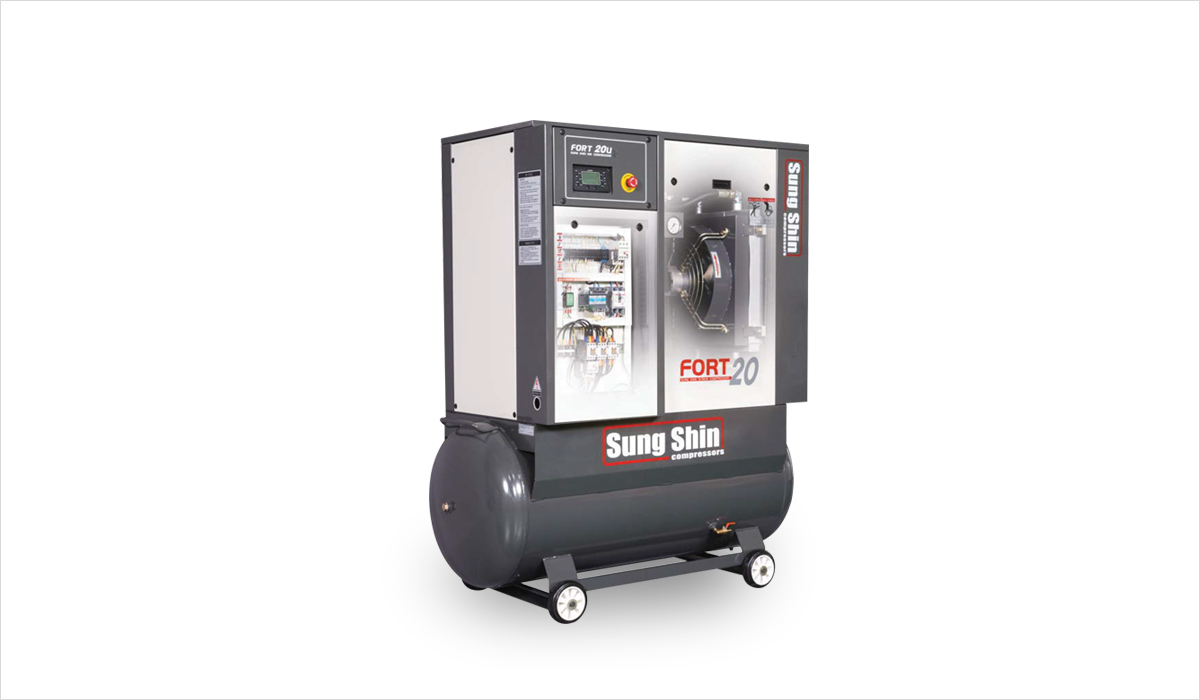

FORT-SERIES


◎ FEATURES


▪ 최적환경을 위해 개발된 무소음 공기압축기

▪ 편리한 자동 벨트장력 조절장치

▪ 디지털 콘트롤러




◎ SPECIFICATIONS

MODEL
FORT 10U
FORT 15U
FORT 20U
Motor Power HP(kw)
10(7.5)
15(11)
20(15)
F.A.D(m3/min)
7barg
1.2
1.7
2.52
F.A.D(m3/min)
9barg
1
1.44
2.27
F.A.D(m3/min)
12barg
0.92
1.15
1.79
Discharge Connection
3/4"(20A)
3/4"(20A)
3/4"(20A)
Type of Drive
Belt
Belt
Belt
Cooling Method
Air cooled
Air cooled
Air cooled
Starting Method
Direct on line
Direct on line
Y-△
Dimension(mm)
Width
1195
1195
1300
Dimension(mm)
Depth
655
665
730
Dimension(mm)
Height
1080
1080
1154
Receiver Tank(option)
400liter
400liter
400liter
Weight(kg)
290
330
450
